Beispiel: Message Driven Bean

@MessageDriven (activationConfig=
  {
    @ActivationConfigProperty(propertyName="destinationType", propertyValue="javax.jms.Queue"),
    @ActivationConfigProperty(propertyName="destination", propertyValue="queue/MessageBeanQueue")
  })

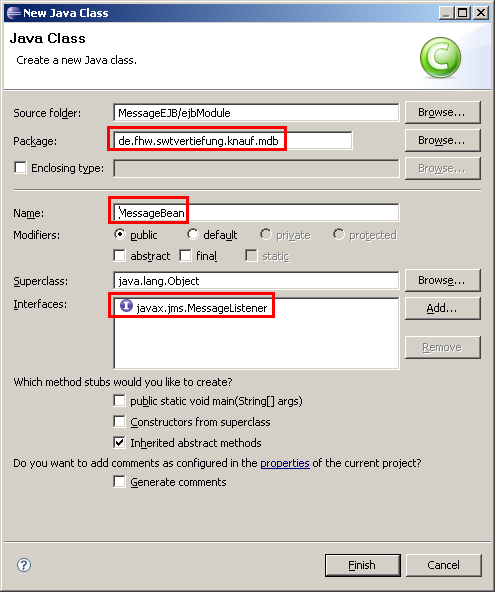

public class MessageBean implements MessageListener
{
  private static final Logger logger = Logger.getLogger ( MessageBean.class.getName() );

  public void onMessage(Message message)
  {
    try
    {
      MessageBean.logger.info("onMessage: Message vom Typ " + message.getClass().toString() + " erhalten");
      if (message instanceof TextMessage)
      {
        TextMessage textMessage = (TextMessage) message;
        MessageBean.logger.info("TextMessage enthält diesen Text: " + textMessage.getText() );
      }
      else
        MessageBean.logger.info("Sonstige Message. toString() = " + message.toString() );
    }
    catch (JMSException jex)
    {
      MessageBean.logger.log( Level.SEVERE, "Fehler beim Verarbeiten der Message: " + jex.getMessage(), jex );
      throw new EJBException ("Fehler beim Verarbeiten der Message: " + jex.getMessage(), jex );
    }
  }
}

  private void sendMessage()
  {
    try
    {
      Properties props = new Properties();
      props.setProperty(Context.INITIAL_CONTEXT_FACTORY,"org.jnp.interfaces.NamingContextFactory");
      props.setProperty(Context.URL_PKG_PREFIXES, "org.jboss.naming.client");
      props.setProperty(Context.PROVIDER_URL, "jnp://localhost:1099");
      props.setProperty("j2ee.clientName", "MessageClient");

      //JMS initialisieren. Die ConnectionFactory aus dem JNDI holen:
      InitialContext initialContext = new InitialContext(props);
      QueueConnectionFactory queueConnectionFactory =
          (QueueConnectionFactory) initialContext.lookup("java:comp/env/jms/MBConnectionFactory");

      //Die konfigurierte Queue holen:
      Queue queue = (Queue) initialContext.lookup("java:comp/env/jms/MBQueueRef");

      //Verbindung erzeugen:
      QueueConnection queueConnection = queueConnectionFactory.createQueueConnection();
      QueueSession queueSession = queueConnection.createQueueSession(false, Session.AUTO_ACKNOWLEDGE);
      QueueSender queueSender = queueSession.createSender(queue);

      //Senden der Nachricht:
      TextMessage textMessage = queueSession.createTextMessage();
      textMessage.setText(this.jTextFieldMessage.getText());

      queueSender.send(textMessage);

      //Fertig.
      JOptionPane.showMessageDialog(this, "Nachricht wurde gesendet und sollte im Serverlog stehen !");
    }
    catch (Exception ex)
    {
      ex.printStackTrace();
    }
  }

   <resource-ref>
      <res-ref-name>jms/MBConnectionFactory</res-ref-name>
      <res-type>javax.jms.QueueConnectionFactory</res-type>
      <res-auth>Container</res-auth>
   </resource-ref>
   <resource-ref>
      <res-ref-name>jms/MBQueueRef</res-ref-name>
      <res-type>javax.jms.Queue</res-type>
      <res-auth>Container</res-auth>
   </resource-ref>

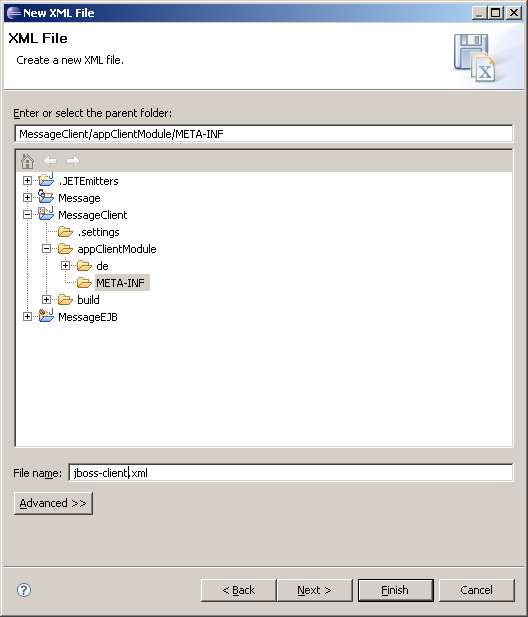

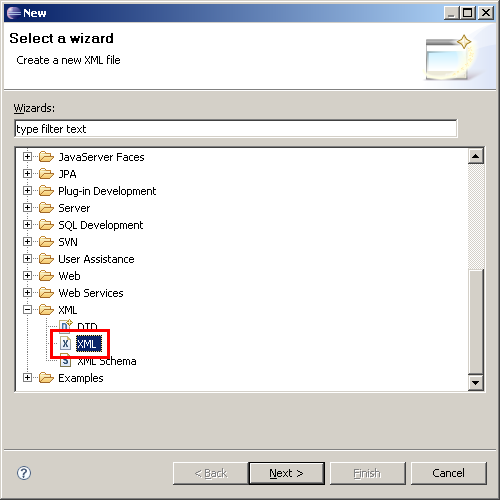

<?xml version="1.0" encoding="UTF-8"?>

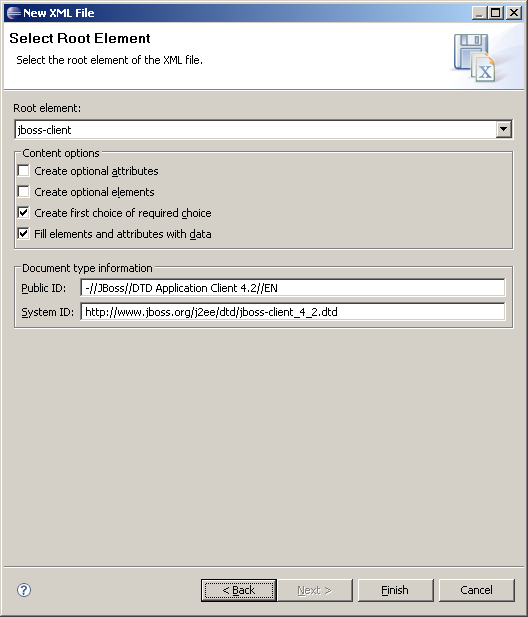

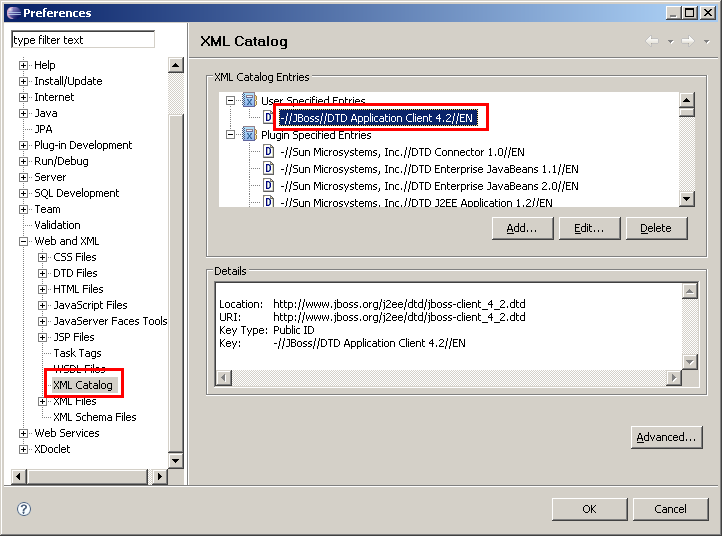

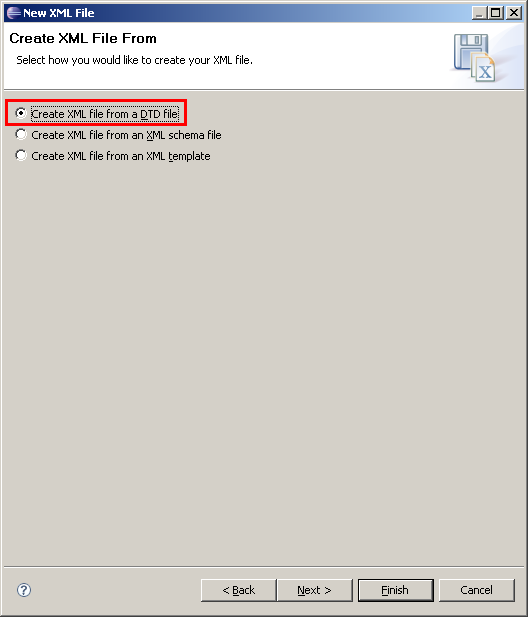

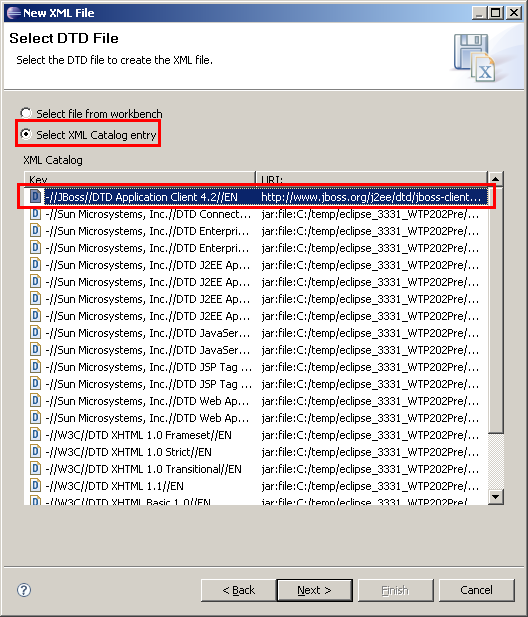

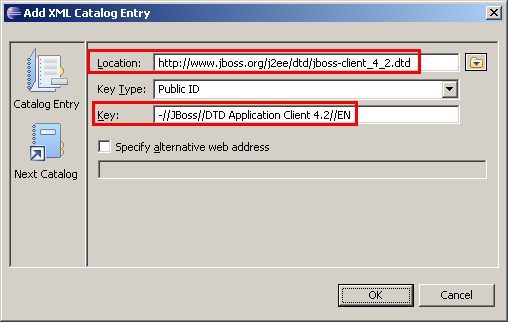

<!DOCTYPE jboss-client PUBLIC "-//JBoss//DTD Application Client 4.2//EN" "http://www.jboss.org/j2ee/dtd/jboss-client_4_2.dtd" >
<jboss-client>
  <jndi-name>MessageClient</jndi-name>
  <resource-ref>
      <res-ref-name>jms/MBConnectionFactory</res-ref-name>

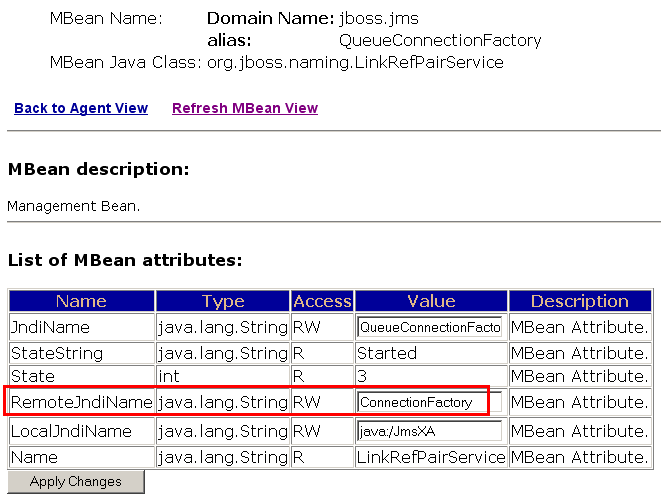

      <jndi-name>ConnectionFactory</jndi-name>
   </resource-ref>
   <resource-ref>
      <res-ref-name>jms/MBQueueRef</res-ref-name>

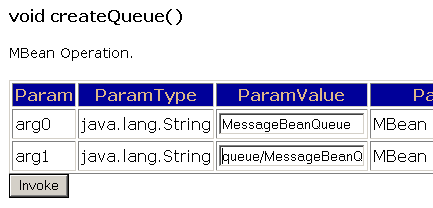

      <jndi-name>queue/MessageBeanQueue</jndi-name>
   </resource-ref>
</jboss-client>

<?xml version="1.0" encoding="UTF-8"?>
<ejb-jar id="ejb-jar_ID" version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
                           http://java.sun.com/xml/ns/javaee/ejb-jar_3_0.xsd">
	<display-name>MessageEJB</display-name>
	<enterprise-beans>

		<message-driven>
			<display-name>MessageBean</display-name>
			<ejb-name>MessageBean</ejb-name>
			<ejb-class>de.fhw.swtvertiefung.knauf.mdb.MessageBean</ejb-class>
			<messaging-type>javax.jms.MessageListener</messaging-type>
			<transaction-type>Container</transaction-type>
			<message-destination-type>javax.jms.Queue</message-destination-type>
			<activation-config>
				<activation-config-property>
					<activation-config-property-name>destinationType</activation-config-property-name>
					<activation-config-property-value>javax.jms.Queue</activation-config-property-value>
				</activation-config-property>
				<activation-config-property>
					<activation-config-property-name>destination</activation-config-property-name>
					<activation-config-property-value>queue/MessageBeanQueue</activation-config-property-value>
				</activation-config-property>
			</activation-config>
		</message-driven>
	</enterprise-beans>
</ejb-jar>
