Beispiel: Message Driven Bean (JBoss 4.0)

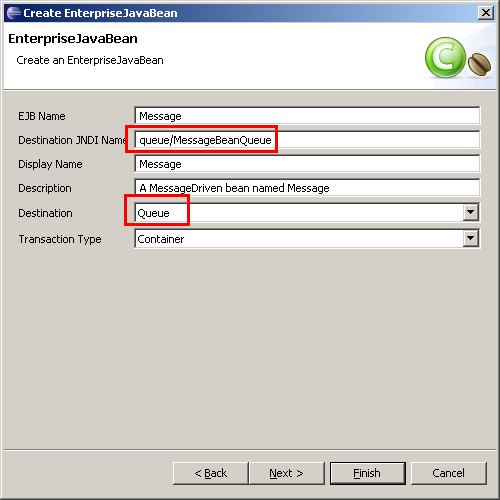

 * @ejb.bean name="Message"
 *     acknowledge-mode="Auto-acknowledge"
 *     destination-type="javax.jms.Queue"
 *     transaction-type="Container"
 *     destination-jndi-name="queue/MessageBeanQueue"
 *     connection-factory-jndi-name="ConnectionFactory"
 *
 * @jboss.destination-jndi-name name="queue/MessageBeanQueue"

      <message-driven >
         <description><![CDATA[<!-- begin-xdoclet-definition -->]]></description>

         <ejb-name>Message</ejb-name>

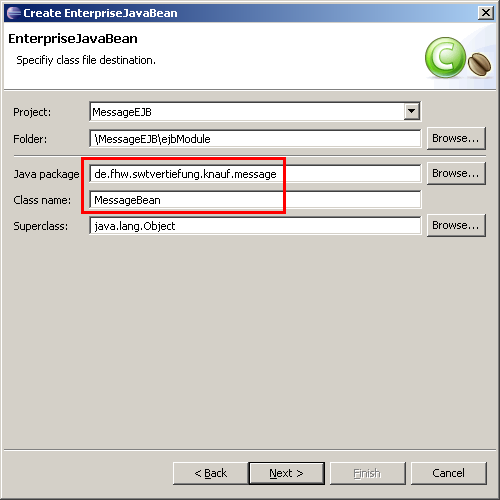

         <ejb-class>de.fhw.swtvertiefung.knauf.message.MessageMdb</ejb-class>

         <messaging-type>javax.jms.MessageListener</messaging-type>
         <transaction-type>Container</transaction-type>
         <message-destination-type>javax.jms.Queue</message-destination-type>
         <activation-config>
           <activation-config-property>
             <activation-config-property-name>destinationType</activation-config-property-name>
             <activation-config-property-value>javax.jms.Queue</activation-config-property-value>
           </activation-config-property>
           <activation-config-property>
             <activation-config-property-name>acknowledgeMode</activation-config-property-name>
             <activation-config-property-value>Auto-acknowledge</activation-config-property-value>
           </activation-config-property>
         </activation-config>

      </message-driven>

      <message-driven>
         <ejb-name>Message</ejb-name>
         <destination-jndi-name>queue/MessageBeanQueue</destination-jndi-name>
      </message-driven>

  /**Methode aus Interface "MessageListener": Ausführen der übergebenen Message.
   * Hier erfolgt nur eine Logausgabe.
   * Alle JMS-Fehler werden als EJB-Exception behandelt.
   * @param message Die zu verarbeitende Message.
   */
  public void onMessage(javax.jms.Message message)
  {
    try
    {
      MessageBean.logger.info("onMessage: Message vom Typ " + message.getClass().toString() + " erhalten");
      if (message instanceof TextMessage)
      {
        TextMessage textMessage = (TextMessage) message;
        MessageBean.logger.info("TextMessage enthält diesen Text: " + textMessage.getText() );
      }
      else
        MessageBean.logger.info("Sonstige Message. toString() = " + message.toString() );
    }
    catch (JMSException jex)
    {
      MessageBean.logger.log( Level.SEVERE, "Fehler beim Verarbeiten der Message: " + jex.getMessage(), jex );
      throw new EJBException ("Fehler beim Verarbeiten der Message: " + jex.getMessage(), jex );
    }
  }

private void sendMessage()
  {
    try
    {
      Properties props = new Properties();
      props.setProperty(Context.INITIAL_CONTEXT_FACTORY,"org.jnp.interfaces.NamingContextFactory");
      props.setProperty(Context.URL_PKG_PREFIXES, "org.jboss.naming.client");
      props.setProperty(Context.PROVIDER_URL, "jnp://localhost:1099");
      props.setProperty("j2ee.clientName", "MessageClient");

      //JMS initialisieren. Die ConnectionFactory aus dem JNDI holen:
      InitialContext initialContext = new InitialContext(props);
      QueueConnectionFactory queueConnectionFactory =
          (QueueConnectionFactory) initialContext.lookup("java:comp/env/jms/MBConnectionFactory");

      //Die konfigurierte Queue holen:
      Queue queue = (Queue) initialContext.lookup("java:comp/env/jms/MBQueueRef");

      //Verbindung erzeugen:
      QueueConnection queueConnection = queueConnectionFactory.createQueueConnection();
      QueueSession queueSession = queueConnection.createQueueSession(false, Session.AUTO_ACKNOWLEDGE);
      QueueSender queueSender = queueSession.createSender(queue);

      //Senden der Nachricht:
      TextMessage textMessage = queueSession.createTextMessage();
      textMessage.setText(this.jTextFieldMessage.getText());

      queueSender.send(textMessage);

      //Fertig.
      JOptionPane.showMessageDialog(this, "Nachricht wurde gesendet und sollte im Serverlog stehen !");
    }
    catch (Exception ex)
    {
      ex.printStackTrace();
    }
  }

   <resource-ref>
      <res-ref-name>jms/MBConnectionFactory</res-ref-name>
      <res-type>javax.jms.QueueConnectionFactory</res-type>
      <res-auth>Container</res-auth>
   </resource-ref>
   <resource-ref>
      <res-ref-name>jms/MBQueueRef</res-ref-name>
      <res-type>javax.jms.Queue</res-type>
      <res-auth>Container</res-auth>
   </resource-ref>

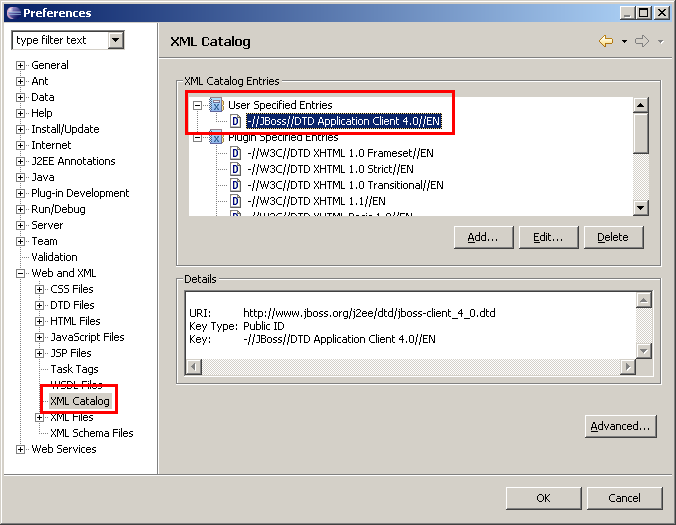

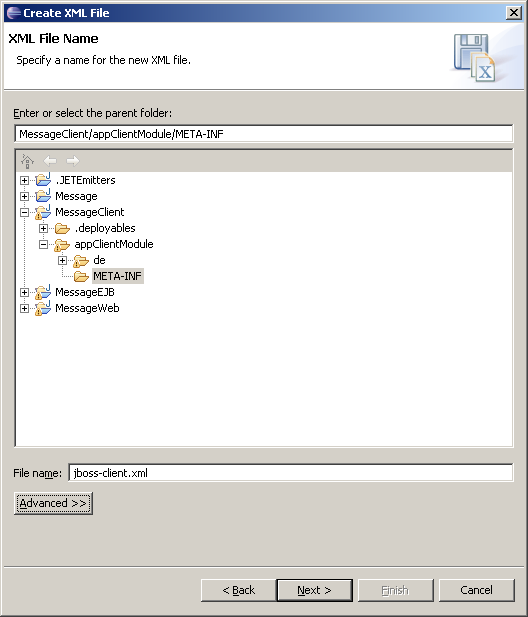

<?xml version="1.0" encoding="UTF-8"?>

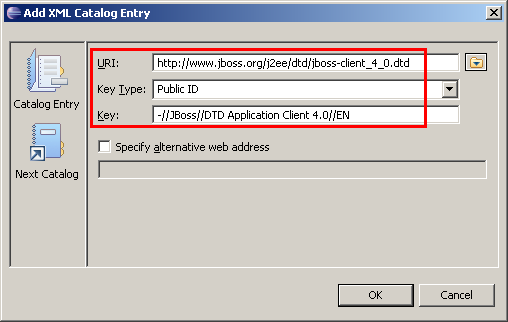

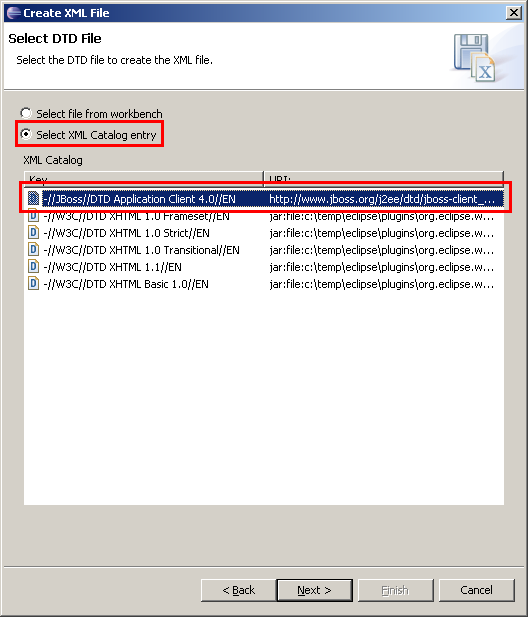

<!DOCTYPE jboss-client PUBLIC "-//JBoss//DTD Application Client 4.0//EN" "http://www.jboss.org/j2ee/dtd/jboss-client_4_0.dtd" >

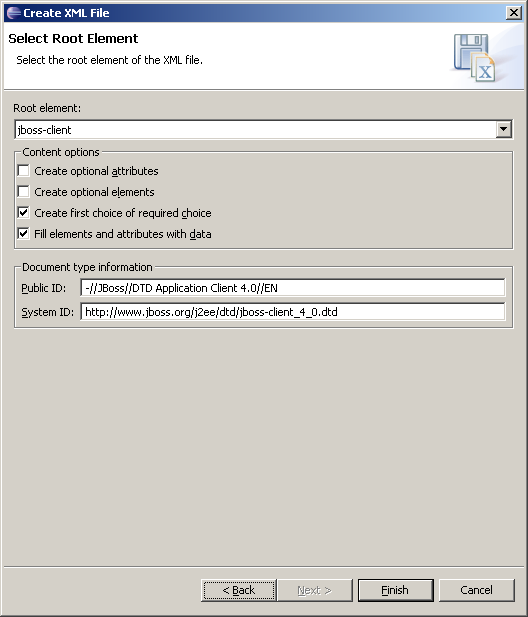

<jboss-client>
  <jndi-name>MessageClient</jndi-name>
  <resource-ref>
      <res-ref-name>jms/MBConnectionFactory</res-ref-name>
      <jndi-name>ConnectionFactory</jndi-name>
   </resource-ref>
   <resource-ref>
      <res-ref-name>jms/MBQueueRef</res-ref-name>
      <jndi-name>queue/MessageBeanQueue</jndi-name>
   </resource-ref>
</jboss-client>
